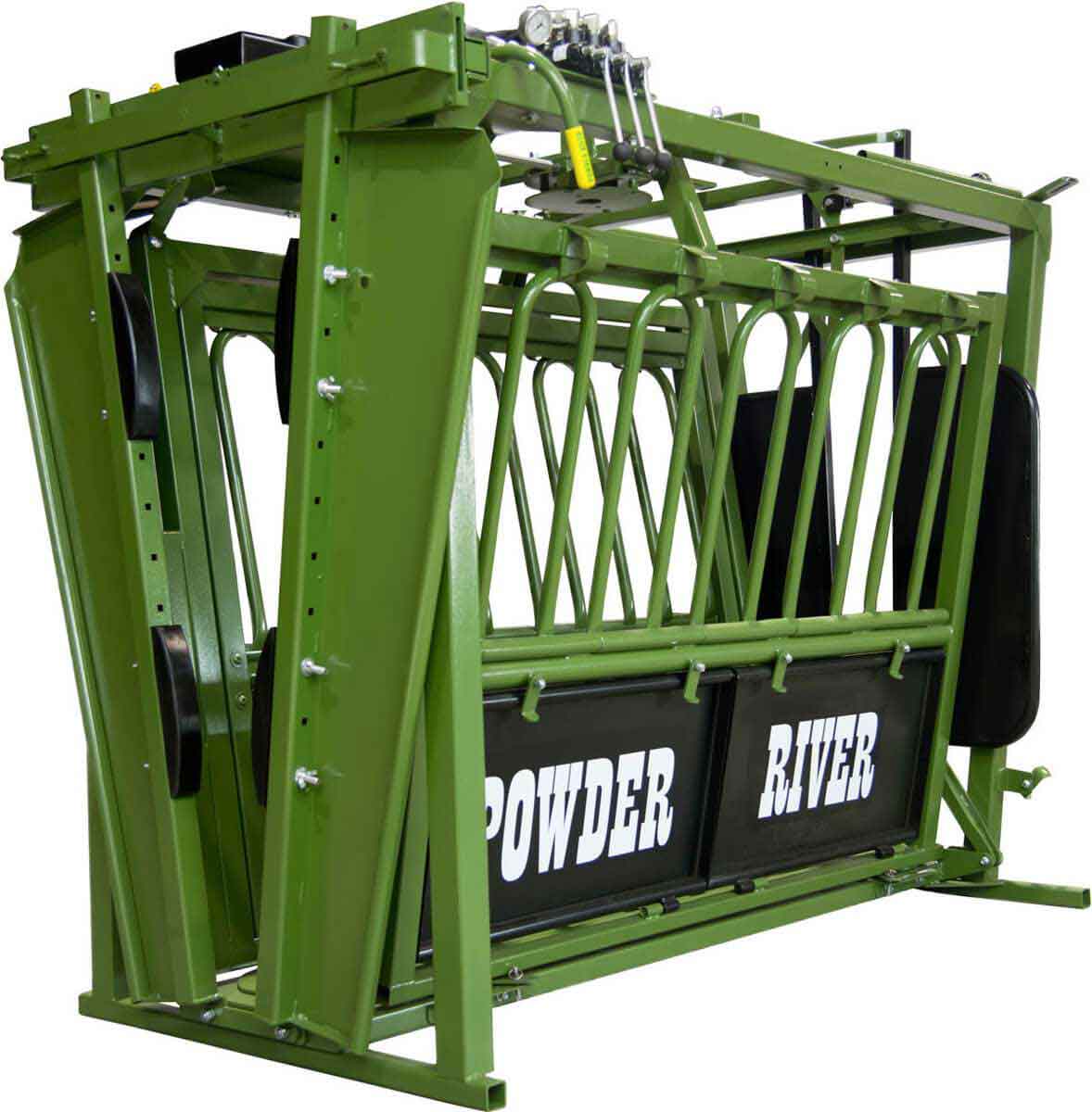

H2000 Hydraulic Squeeze Chute

The Powder River H2000 Hydraulic Cattle Squeeze Chute (Model 002-55000) is an all-purpose chute rated for cattle and livestock of most sizes. It is an affordable option for incorporating hydraulics into your operation. The stanchion, center squeeze, and split tailgate are controlled by hydraulic cylinders, which are tucked up and out of the way. Both the headgate and center squeeze utilize rack and pinion mechanisms to help keep the operator and the animal away from the hydraulic cattle chute’s moving parts. The squeeze has split kick panels, left-side hand controls, right-side exit, adjustable floor, and powder coated finish. The Powder River H2000 comes with a 5-year chute warranty and a 1-year hydraulic parts warranty.

Specifications:
* Motor: 2HP, 1750 RPM, 110v or 220v, (18 amp 110, 9 amp 220)
* Pump: Two stage, 13 GPM
* Valve Body: Three spool
* System Pressure: 1000 lbs. (release set at factory)
* Hydraulics Warranty: 1 year
* Generator operation requires 8500 watt cold startup and 2700 watt continuous (warm)
* 96” overall length (98” with clevis)
* 53” widest point
* 85” overall height
* 64” stanchion height
* 65.5” tailgate height
* 60” chute side height
