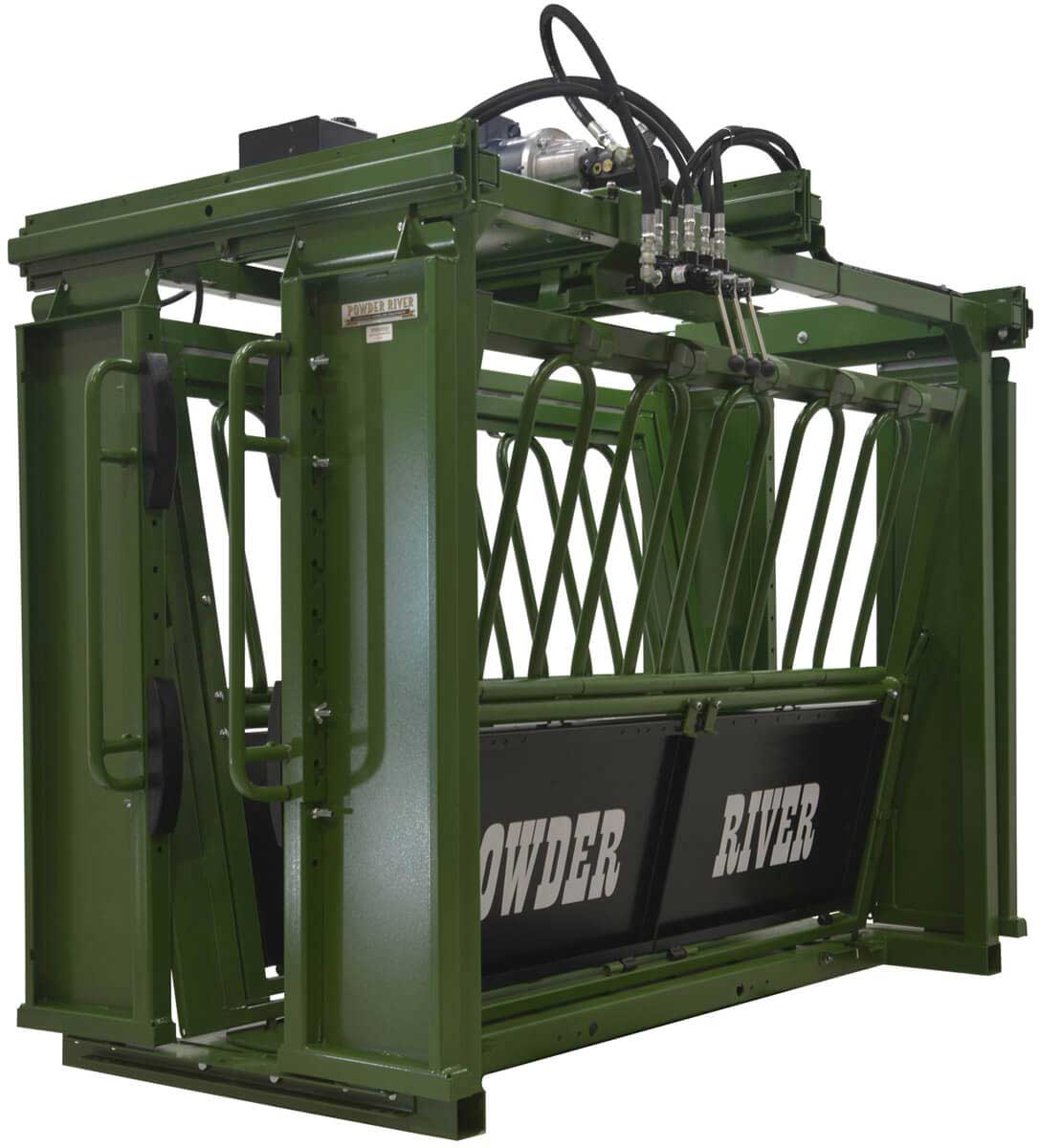

HC2500 Hydraulic Squeeze Chute

Model 003-43000. The Powder River HC2500 Hydraulic Squeeze Chute is designed with a Curtain Style Headgate and Tail Gate. The wide 28" openings offer a clear visual path to entice entry and facilitate smooth entry and exit. Stanchion, center squeeze, and split tailgate are controlled by hydraulic cylinders, which are tucked up and out of the way. Powder River's revolutionary rack and pinion headgate and squeeze mechanisms make catching and holding cattle an easy task, while maintaining operator safety. Includes neck extender to help control the head and provide a more accessible injection site. Split kick panels. Left-side hand controls. Right-side exit. 5-year chute warranty. 1-year hydraulic parts warranty.

Hydraulics:
* Motor: 5HP, 1750 RPM
* 220 V power
* Pump: two stage
* Oil capacity: 4.8 gallons
* Hydraulics warranty: 1 year
* 106” overall length
