Extra Heavy Duty Load Cells

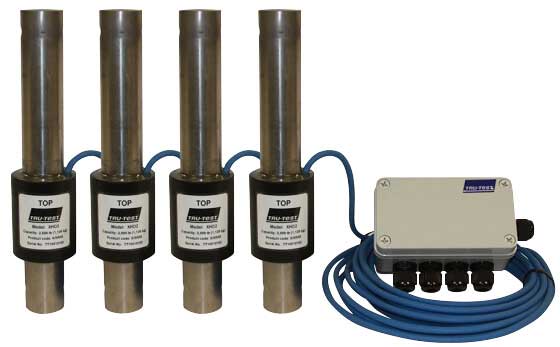

The Tru-Test XHD2 consists of four (2500 lb) extra heavy duty load cells and a junction box. The load cells are fitted for permanent installation under cattle squeeze chutes or crushes. XHD2 load cells are especially suited to applications where extra capacity and durability are required. Plated tool steel construction protects against the corrosive agricultural environment. Factory calibrated for use with a Tru-Test 5000 Series or EziWeighi Series indicator (sold separately) to display weights. In most applications, each load cell is mounted in a bracket assembly (sold separately).

See below for Load Bar Selection Guide.

Includes four load cells, junction box, load cell cables and terminal connectors. 10,0000# weight capacity, accurate within 1%. Operating temperature +15 to +105 °F. Storage temperature -5 to +140 °F.
