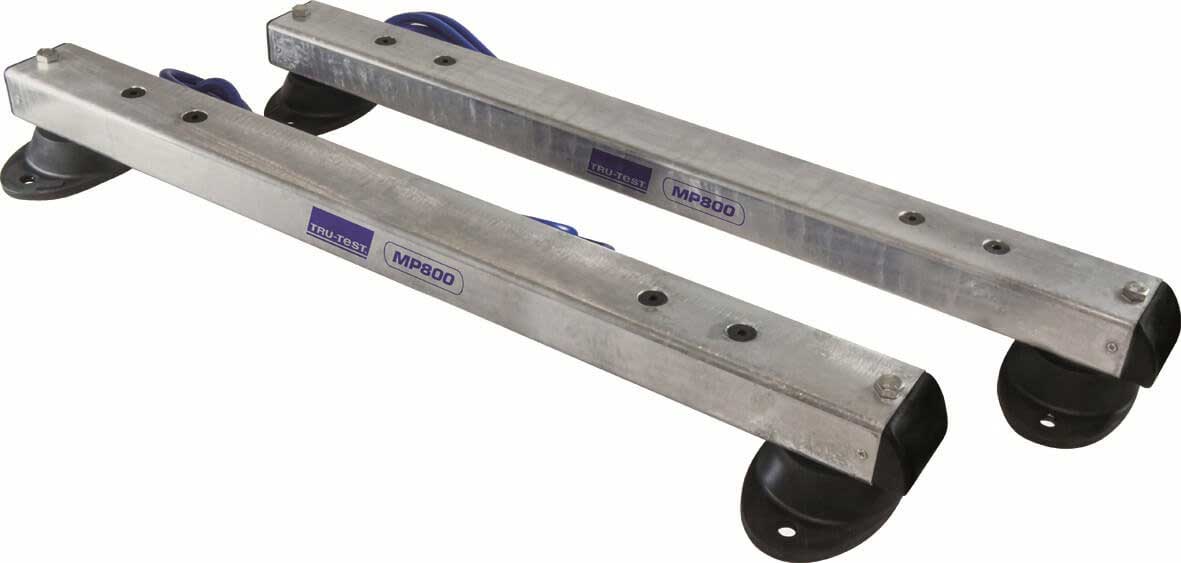

MP800 Load Bars

MP800 multi purpose load bars can be used for a variety of single animal weighing applications, including under alleyway platforms, cages and small animal crates. These load bars are calibrated for use with a Tru-Test indicator (sold separately) to display weights. Load bars measure 4" high x 3” wide x 32" long and the footings measure 5-1/8" wide.

See below for Load Bar Selection Guide.

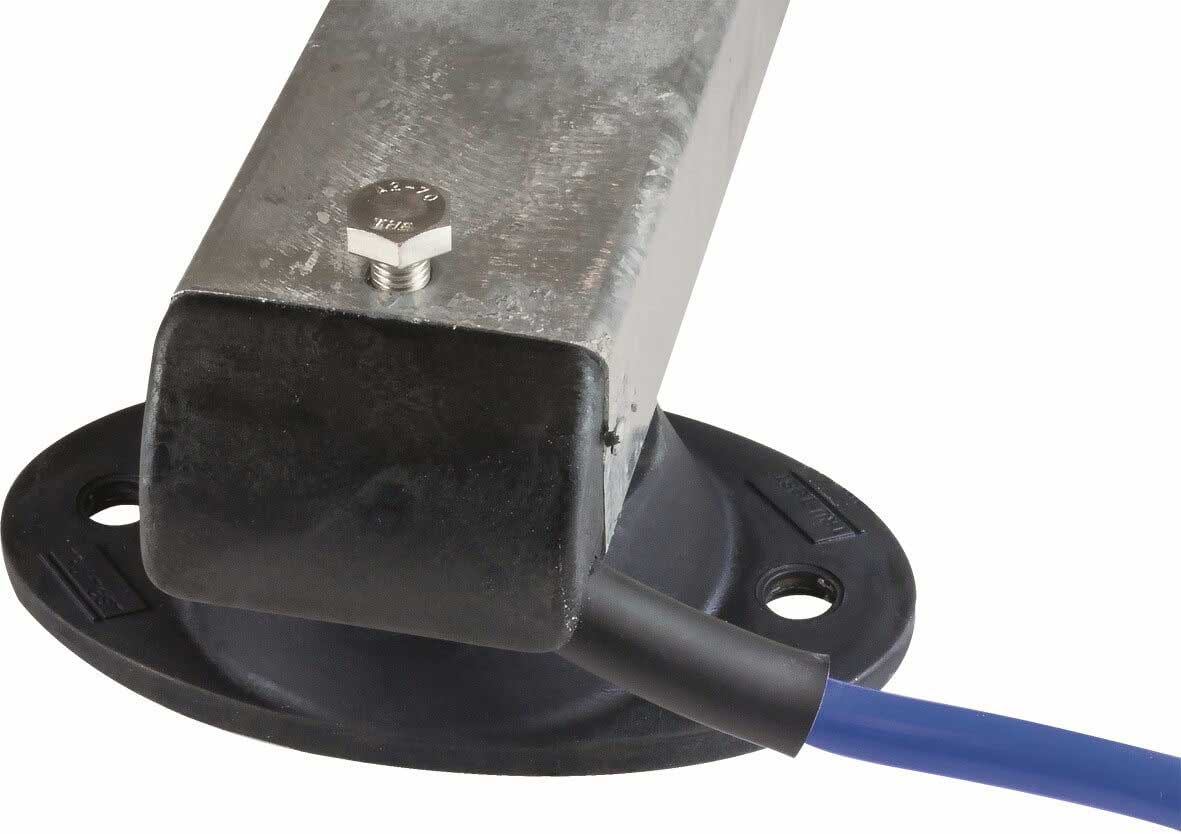

This Includes two MP800 load bars and 16.5’ cable. Built to provide many years of trouble-free service. Bars are zinc-plated with gold passivated load bar housings that are corrosion-resistant. Internal shear beam load cells are made from aircraft grade aluminum and then completely enclosed to protect against dirt, moisture and rodents. 6,600 lb. weight capacity and accurate within 1% when installed on a firm, level surface. Operating temperature +15 to +105 °F. Storage temperature -5 to +120 °F.

• Request Additional Information
• Additional Information
• Instructions
• Load Bar Scale Selection Guide
