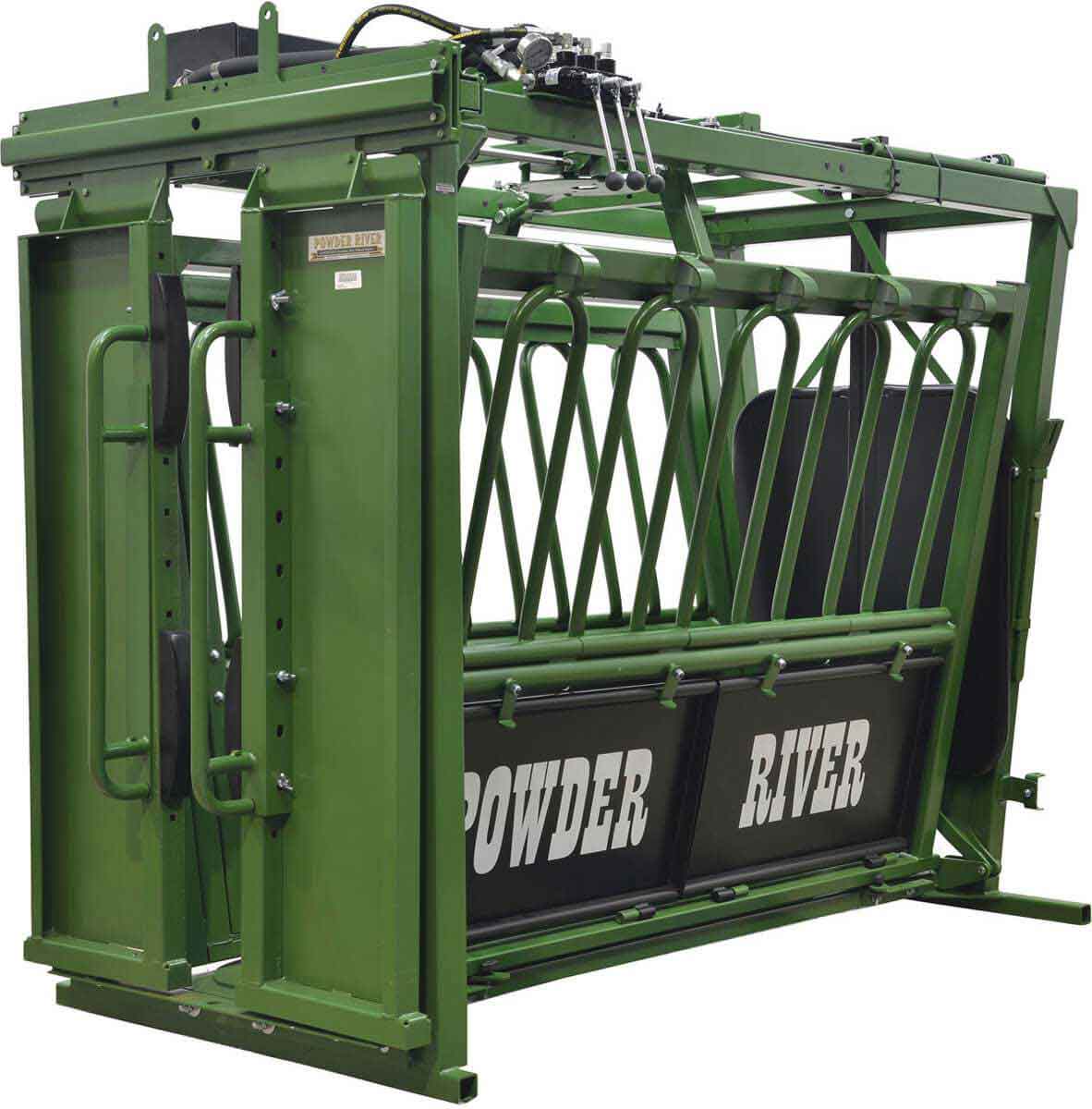

HC2000 Hydraulic Curtain Style Squeeze Chute

The Powder River HC2000 Hydraulic Squeeze Chute (Model 002-56000) is designed with a curtain-style headgate, which is powered by 110 or 220 volt power. The curtain style design opens the same width at the top and bottom and wide opening offers a clear visual path to entice entry and facilitate smooth exits. Stanchion, center squeeze, and split tailgate of the cattle chute are all controlled by hydraulic cylinders, which are tucked up and out of the way. Powder River's revolutionary rack and pinion headgate and squeeze mechanisms make catching and holding cattle an easy task while still maintaining operator safety. Includes neck extender to help control the head and provide a more accessible injection site, split kick panels, left-side hand controls, and right-side exit. This Powder River chute has an adjustable, low-profile floor. Powder-coated finish. 5-year chute warranty. 1-year hydraulic parts warranty.

Hydraulics:
* Motor: 2HP, 1750 RPM, 110v or 220v, (18 amp 110/9 amp 220)
* Pump: Two stage, 13 GPM
* Valve Body: Three spool
* System Pressure: 1000 lbs. (release set at factory)
* Hydraulics Warranty: 1 year
* Generator Operation requires 8500 watt cold startup
* 96” overall length (98” with clevis)
* 53” widest point
* 85” overall height
* 64” stanchion height
* 65.5” tailgate height
* 60” chute side height
